SFF 8665 External SAS Cable

Name: SFF 8665 External SAS Cable
Brand: HiSeTec
Price: 1 USD

Quality SFF 8665 External SAS Cable for sale

Place of Origin : Guangdong,China

Brand Name : HiSeTec

Certification : RoHS CE

Packaging Details : PE bag

Delivery Time : 5-8Week

Payment Terms : TT

Color : Black

outer covering : Zinc alloy

Length : 3M

Transmission rate : 100Gbps

PCB : Goldfinger gold plated 30U

Series : QSFP28 SFF-8665

Wire AWG : 26AWG

Sample : Allowed

Contact Now

QSFP28 100G DAC(PASSIVE)(SFF-8665),100G Passive Direct Attach Copper Cable

Applications
· Switches / Routers / HBAs
· Server & Storage Devices
· Data Center Networking
· Enterprise storage
· High Performance Compute
· 100Gbs Ethernet
· Base Station / BBU / RRU

Product Features

· Meet MSA SFF-8665 specification

· Supports serials data rates up to 100Gbps

· Hot pluggable

· High cost effective to Fiber optics solution

· Low power consumption

· Enhanced EMI suppression

· Differential impedance 100ohm

SFF-8665

Series: QSFP28

· Cable Length:1.0/2.0/3.0/5.0Meters

· Wire Size:26AWG,Silver plated copper,OD:8.0MM

· Plating: Au 30u"

· Color: Black Cable

· Environmental Compliance: RoHS

Electrical Characteristics

. Raw Cable Impedance: 100 ohm±10%
. Cable Assembly Impedance: 100 ohm±15%
. Intra-pair Skew: ﹤10ps
. Maximum Insertion Loss:22.48 dB@12.8906 GHz
. Crosstalk:≤-35 dB

Product Name	3m (10ft) 100G QSFP28 to QSFP28 Passive Direct Attach Copper Twinax Cable
Wire AWG	26AWG
Cable Length	3m(10ft)
Connector Type	QSFP28
Max Data Rate	100Gbps
Protocols	SFF-8665, Infiniband ER
Color	Black

100GBASE-CR4 QSFP28 to QSFP28 DAC Direct Attach Copper Twinax Cable, Passive, 3-Meter(10ft), 26AWG.
100% Compatible for Cisco QSFP-100G-CU3M (100GBASE-CR4 Passive Copper Cable).
QSFP28 to QSFP28 copper direct-attach 100GBASE-CR4 cables are suitable for very short links and offer a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports of switches within racks and across adjacent racks.

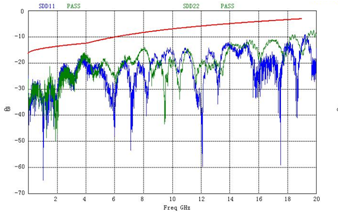

In 10Gtek's Signal Integrity Lab, we 100% passed TDR & VNA tested. And each DAC Cable is individually tested on switches before delivery.
