Tinned Copper SFF 8665 HD 12G 8X Internal SAS Cable

Product Categories
Contact Now

Tinned Copper SFF 8665 HD 12G 8X Internal SAS Cable

Place of Origin : Guangdong,China

Brand Name : HiSeTec

Certification : RoHS CE

Packaging Details : PE bag

Delivery Time : 5-8Week

Payment Terms : TT

Color : Black

Transmission Data : 12Gbps

Length : 0.5M

Cable AWG : 30AWG

outer covering : PBT

PCB : Goldfinger gold plated 30U

Series : Mini SAS SFF-8643

Sample : Allowed

Contact Now

Tinned Copper SFF 8665 HD 12G 8X Internal SAS Cable

MiniSAS HD 12G 8X SFF-8643 INTERNAL COPPER CABLE
SFF-8643
Series: HD Mini SAS
· Cable Length:0.5 Meters
· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM
· Plating: Au 30u"
· Color: Cable Silver, Overmold Black
· Environmental Compliance: RoHS
Product Features
· Meet SAS3.0 specification
· Low power
· Differential impedance 100ohms
· Self lock design
Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications

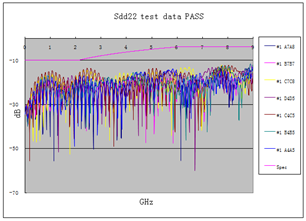

Signal Integrity
. Mated Connector Impedance: 100 ohm±15%
. Cable Absolute Impedance: 100 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms
. Insertion loss: -6dB maximum up to 4.5Ghz;
11dB maximum up to 9Ghz.
. Crosstalk: -35 dB up to 6Ghz
Mini SAS HD 12G 8X INTERNAL COPPER CABLE(SFF-8643) 72P STR TO 72P STR
Product DescriptionSAS SFF-8643
ConnectorInternal HD Mini(SFF-8665)
Cable Length0.5M
Signal Wire Size30AWG, Tinned Copper
Impedance100 OHM
PlatingAu 30u'
Cable ColorBlack
Applicationsservers,Storage rack,Workstations

Tinned Copper SFF 8665 HD 12G 8X Internal SAS Cable
Tinned Copper SFF 8665 HD 12G 8X Internal SAS Cable
Tinned Copper SFF 8665 HD 12G 8X Internal SAS Cable

1) Designed to connect a 12 Gbps host bus adapter with SFF-8643 to a SAS backplane or expander with SFF-8643;
2) SAS 2.1 (6Gbps) and SAS 3 (12Gbps ) performance compliant
3) HIGH DENSITY 36 Pin SFF 8643 x 4 connector allows higher port density with internal hosts and storage devices;
4) Support SAS 3.0 12 Gbps performance with compatible SAS storage systems

5) SFF-8643 COMPATIBLE with SAS 3 RAID controllers with internal Mini SAS HD ports such as the Adaptec RAID 71605 and LSI Logic LSI00346 9300-4i etc.
